Txheej Txheem Xaiv Phau Ntawv Qhia

Kev xaiv cov txheej txheem tsim khoom yog qhov tseem ceeb ntawm txhua theem ntawm kev tsim khoom. Peb muab luv luv -khiav txhaj tshuaj molding, choj cuab yeej, urethane casting, thiab SLA prototyping los pab koj ua tiav qhov zoo sib npaug ntawm tus nqi, ceev, thiab zoo rau koj cov khoom ntim yas tsawg.

Txheej txheem	Ntau qhov ntau	Cov Khoom Siv	Lub Sijhawm Lead	Unit nqi Trend	Zoo tshaj rau
SLA / Rapid Prototyping	1-20 pcs	Photopolymer cob	1-3 hnub	Siab dua (ib thooj)	Tsim validation, tswvyim qauv

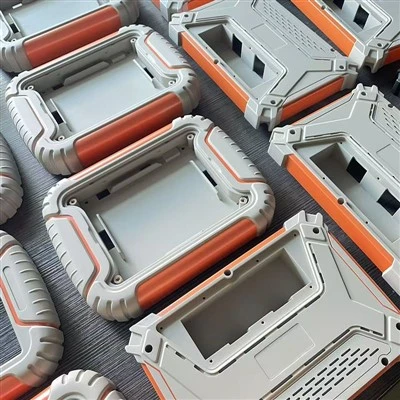

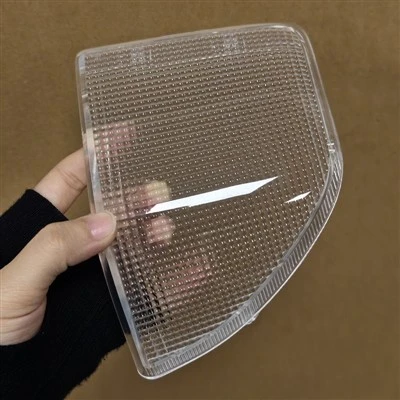

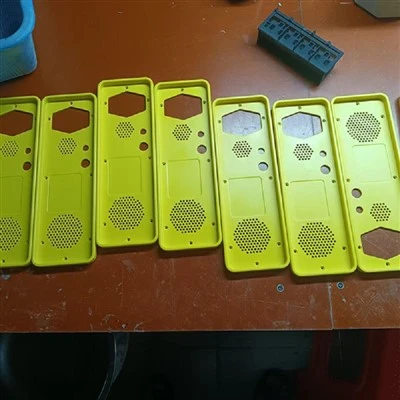

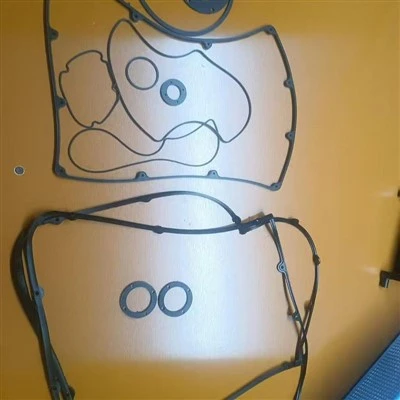

Urethane Casting	10-200 pcs	ABS-zoo li, PC-zoo li, Roj Hmab-zoo li	5-10 hnub	Nruab nrab	Cov qauv ua haujlwm, me me -batch zaub qhov chaw

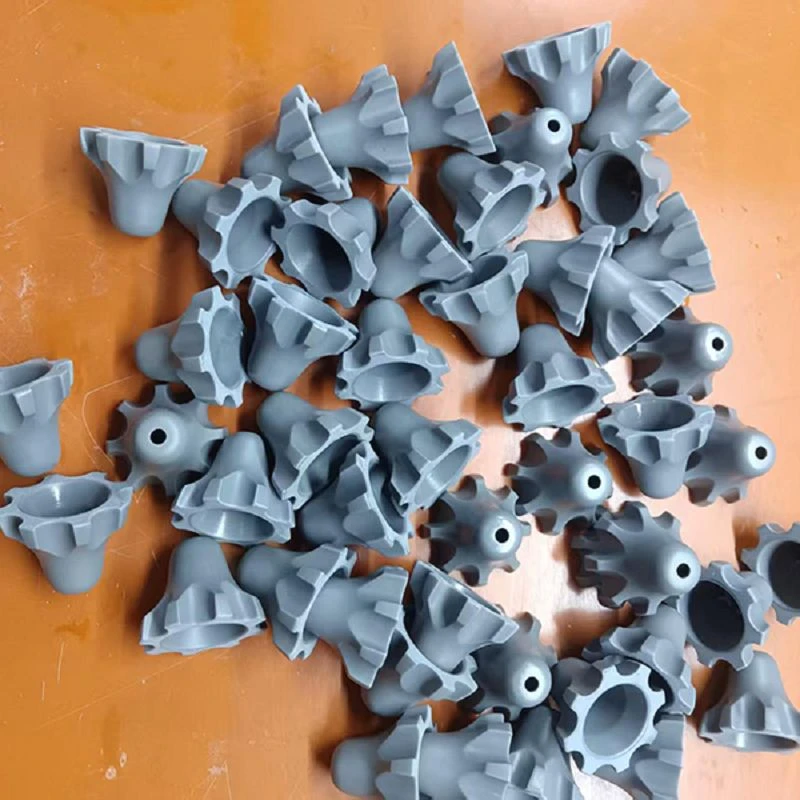

Luv -Khiav Txhaj Moulding	50-5,000 pcs	ABS, PP, PC, Nylon	2-4 lub lis piam	Lower (txo nrog ntim)	Tsawg ntim yas ntau lawm, choj ntau lawm
Aluminium Choj Tooling	500-10,000 pcs	Engineering plastics	2-3 lub lis piam	Tus nqi- zoo	Seamless hloov los ntawm cov qauv mus rau ntau lawm

Thaum lub sij hawm DFM tsom xam, peb muab qhov tseem ceeb ntawm phab ntsa thickness uniformity, lub kaum sab xis, cov khoom shrinkage, thiab lub rooj vag ua tau. Ntau tus neeg muas zaub tuaj txog nrog qhov chaw uas qhia cov cim dab dej lossis kev sib tsoo hauv qis - ntim yas txhaj tshuaj molding - los ntawm kev ua kom zoo dua DFM thaum ntxov, peb txo qis tus nqi qis rau hauv qab no1%thiab shorten pwm txhuas lub sij hawm ho.

Muaj peev xwm tsim tau

Peb tuav lub peev xwm tsim tau muaj zog rau qis- ntim cov yas thiab ua kom muaj kev nyab xeeb me me -batch xaj los ntawm50 mus rau 10,000 pieces, nrog xaiv tej yaam num scalable rau ntau dua ntim.

Cov peev txheej tseem ceeb

Ntau qhov ntau:

Pib los ntawm 50 daim - tsis muaj MOQ nruj, hloov tau rau ntawm -xav tau cov khoom yas

Qhov loj thiab qhov tseeb:

Qhov siab tshaj qhov loj mus txog800 × 600 hli; txheem kam rau ua± 0.08-0.13 hli; qhov tseem ceeb qhov ntev ua tiav ntawm± 0.05 hli(cov ntaub ntawv -dependent)

Cov khoom siv xaiv:

ABS (siab- cuam tshuam), PP (chemical-}resistant), PC (siab-toughness), Nylon (hnav-}resistant), PC / ABS alloy, thiab tshwj xeeb- hloov kho engineering yas

Kev soj ntsuam zoo:

Txhua pawg ua tiav tag nrho - kev tshuaj xyuas qhov ntev, kev sim ua haujlwm, thiab kev tshuaj xyuas qhov muag - txhawb nqa los ntawm CMM (Coordinate Measuring Machine) thiab optical comparator

Delivery Advantage

Ib txwm steel -pwm txhaj tshuaj molding feem ntau yuav tsum tau8-12 lub lis piamlos tsim thawj cov khoom. Peb aluminium ceev tooling shortens pwm txhuas lub sij hawm rau2-3 lub lis piam, dramatically accelerating lub pace ntawm tsawg ntim yas ntau lawm.

Sijhawm

Theem	Duration
DFM tshuaj xyuas & optimization	1-2 hnub
Aluminium pwm machining	7-14 hnub
Thawj tsab xov xwm sim & kho	1-3 hnub
Me -batch ntau lawm & xa khoom	-
Tag nrho (ceev tshaj)	7-21 hnub * (qhov yooj yim rau qhov nyuaj)*

Sib piv vs. Traditional Steel Tooling:

Ib txwm steel pwm: 8-12 lub lis piam rau kev siv + kev npaj ntau lawm

Peb cov cuab yeej siv aluminium: tsim nyog me me -batch yas khoom xa tuaj2-3 lub lis piam- zoo tagnrho rau luv luv -khiav txhaj tshuaj molding thiab ceev kev lag luam validation

Choj Tooling

Peb tshwj xeeb hauv kev pab cov neeg siv khoom taug kev hloov pauv ntawm kev tsim qauv mus rau cov khoom ntim yas qis thiab thaum kawg rau kev tsim khoom loj. Tus txheej txheem kev loj hlob:

Prototype theem -

SLA / urethane casting rau cov tsos thiab haum validation

Choj tooling theem -

Aluminium pwm luv-khiav kev txhaj tshuaj molding rau kev kuaj kev lag luam

Cov cuab yeej tsim khoom theem -

Hlau pwm, siab - ntim ntau lawm

Kev Tshawb Fawb Tseeb: Cov Khoom Siv Hluav Taws Xob Cov Khoom Siv Hluav Taws Xob

Kauj ruam 1:100 urethane- nrum qauv rau kev pom thiab kev sib dhos

Kauj ruam 2:5,000 daim ntawm choj cuab yeej rau kev ua lag luam validation

Kauj Ruam 3:Seamless hloov mus rau hlau- pwm ntau lawm ntawm 50,000 daim / hli tom qab 6 lub hlis

Tag nrho cov txheej txheem - los ntawm kev tsim khov rau thawj lub khw muag khoom - tsuas yog siv5 lis. Los ntawm kev xaiv cov khoom thaum ntxov thiab DFM tsom xam, ib feem ntawm tus nqi raug txo los ntawm22%thaum tswj kev tsim khoom- qib zoo thoob plaws hauv qib qis - ntim.

FAQ

Dab tsi yog qhov tsawg kawg nkaus txiav txim kom muaj nuj nqis rau cov yas txhaj tshuaj tsawg tsawg?

Peb txhawb nqa qhov kev txiav txim yam tsawg kawg nkaus ntawm 50 daim uas tsis muaj kev txwv MOQ nruj - haum rau me me -batch yas manufacturing thiab ntawm - xav tau cov khoom yas. Qhov ntau tuaj yeem hloov kho raws li qhov nyuaj.

Dab tsi yog qhov sib txawv ntawm cov cuab yeej siv choj thiab cov cuab yeej qauv?

Cov cuab yeej qauv siv feem ntau yog siv rau me me - ntsuas qhov siv tau (feem ntau tsawg dua 500 daim), thaum cov cuab yeej siv choj siv siab dua - lub zog aluminium lossis P20 steel thiab tuaj yeem tsim ntau txhiab mus rau kaum tawm txhiab qhov chaw. Nws sib txuas ceev thiab kav ntev, ua rau nws txoj kev hloov pauv zoo tshaj plaws los ntawm cov qauv mus rau ntau lawm.

Cov ntaub ntawv dab tsi muaj rau me me -batch plastic manufacturing?

Cov ntaub ntawv muaj xws li ABS, PP, PC, thiab Nylon - ua tau raws li cov kev cai sib txawv rau lub zog, pob tshab, thiab huab cua tsis kam. Peb pom zoo cov ntaub ntawv zoo tshaj plaws raws li koj daim ntawv thov tshwj xeeb.

Qhov tsawg- ntim pwm feem ntau raug nqi dab tsi?

Tej yam yooj yim txhuas pwm feem ntau pib ntawm ob peb txhiab USD - qis dua li cov cuab yeej steel. Tus nqi sib txawv raws qhov loj thiab qhov nyuaj. Xa koj cov ntaub ntawv 3D rau qhov kev tsocai tseeb.

Tsawg- ntim ntau lawm puas tuaj yeem ua tau raws li kev tsim khoom- qib kev kam rau ua?

kiag li. Los ntawm optimized DFM tsom xam, precision pwm machining, thiab cov txheej txheem tswj, peb tsis tu ncua ua kom ntev ntawm ± 0.05-0.13 hli nyob rau hauv tsawg ntim yas txhaj molding - ua tau raws li feem ntau haumxeeb thiab los ua ke yuav tsum tau.
